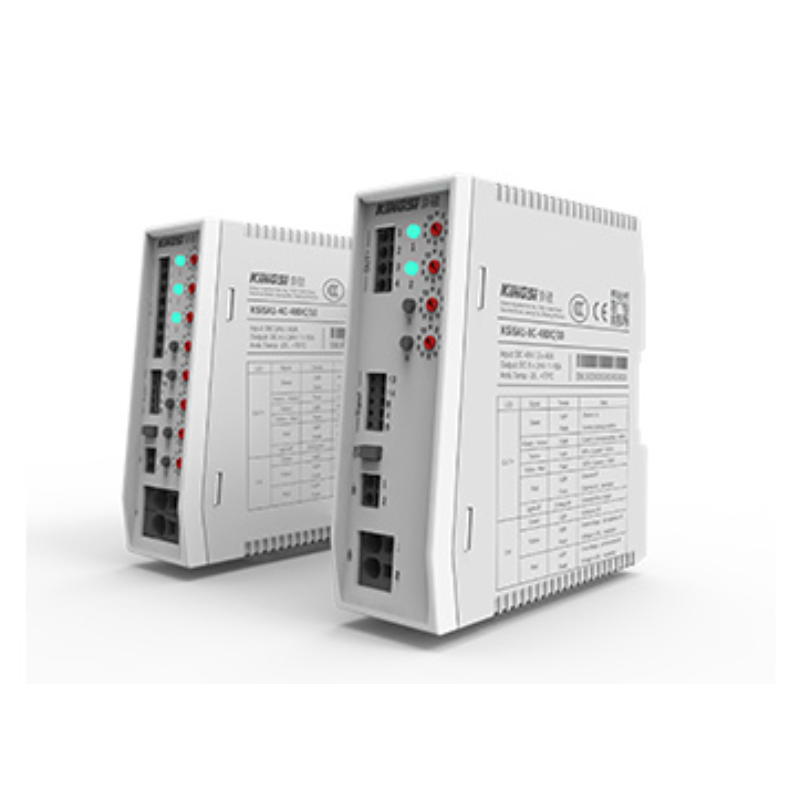

KSiSA1 multi-channel electronic circuit breaker from Jingsi

Inquire
  • Brand
    Jingsi
  • Series
    Multi Channel Electronic Circuit Breaker
  • Model
    KSiSA1-8C-24DC/10A
  • Rated Current
    80A
  • Rated Voltage
    24VDC
  • Release Form
    E (electronic)
  • Single Channel Rated Current
    10A
  • Installation Method
    Rail Installation
  • Number Of Digits
    1
  • Size:
    Width 41mm, Height 130mm, Depth 127mm
  • Protection Channel
    8
  • Control Type
    Multi Channel Electronic Circuit Breaker
  • Insulation Protection Level
    Level III

Product Details

KSiSA1 Multi-channel Electronic Circuit Breaker



Basic Information

+A3:M5

 Basic Information Dimensions Electrical performance Protection features Reliability and Time
Product Type Installation Type Digit Insulation protection level Pollution level Width Height Depth Working voltage range Rated surge voltage Total rated current (INM) Dielectric strength Channel closing current (I0) Current measurement error Required backup fuse Module initialization time MTBF
Equipment circuit breaker (multi-channel electronic circuit breaker) Standard DIN35mm rail installation, 1 position 1 II 类 2 ≤41 mm ≤130 mm ≤120 mm (including DIN 7.5mm type rail) 18 VDC ... 30 VDC 0.5 kV Max. 80 ADC (The incoming line needs to be at least 2 x 6 mm ²) Max. 30 VDC (Load circuit) typ. 50 mA typ. 10 % Rated Current Only when the switching power supply Imax>short-circuit trip capacity, it is necessary to integrate fault protection components Minimum 50 ms, maximum not exceeding 0.5 s 600000 hours (at 25 ° C, according to IEC 61709, SN 29500)





Installation Type Standard DIN35mm rail installation, 1 position
Product Type Equipment circuit breaker
Digit 1
Protection Channel Multi channel electronic circuit breaker
Insulation Protection Level Ⅱ
Pollution Level 2
Width ≤41 mm
Height ≤130 mm
Depth ≤120 mm(including DIN 7.5mm type rail)
Working Voltage Range 18 VDC ... 30VDC
Rated Working Voltage UN 24 VDC
Total Rated Current lNM Max. 80ADC ( IN+ with at least 2 x 6 mm2)
Single Channel Rated CurrentlN 1-10ADC(10 levels adjustable per channel)
Preset Current 10A
Rated Surge Voltage 0.5kV
Release Type E(Electronic)
Required Backup Fuse 仅当开关电源 lmax >短路脱扣容量时需集成故障保护元件
Short Circuit Tripping Ability 1000A
Dielectric Strength Max. 30VDC (Load circuit)
Efficiency > 99 %
Channel Closing Current l0 typ.50mA
Power Consumption ≤0.6W(No-load operation)
≤19W (Nominal operation)
Module Initialization Time Minimum 50ms, maximum not exceeding 0.5s
Cooling Time After Shutdown ≤10s(at overload /short circuit)
Current Measurement ErrorI typ.10 % Rated Current
Temperature Derating 40ADC (at 70°C )
50ADC (at 60 “C)
60ADC (at 50 °C)
70ADC(Based on UL 2367 standard at 40 ° C)
80ADC(at 40 °C)
MTBF (EC 61709.SN 29500) 600,000h (at 25 ℃)
Backup Fuse 15ADC(Each channel)



KSiSA1 Product Specification
