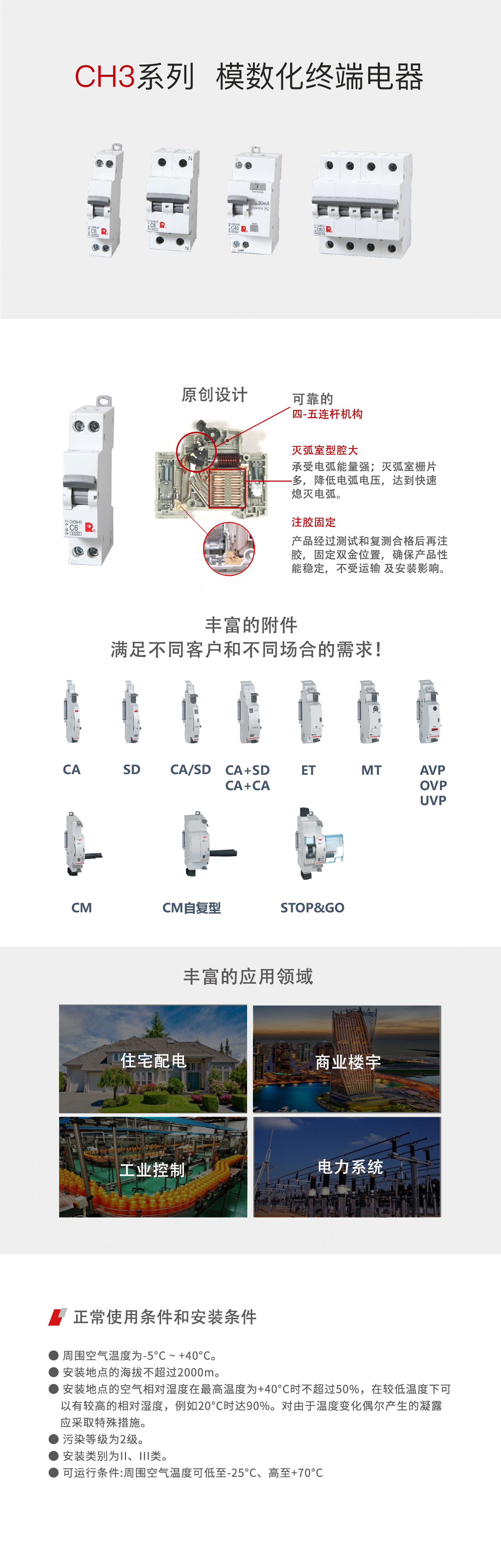

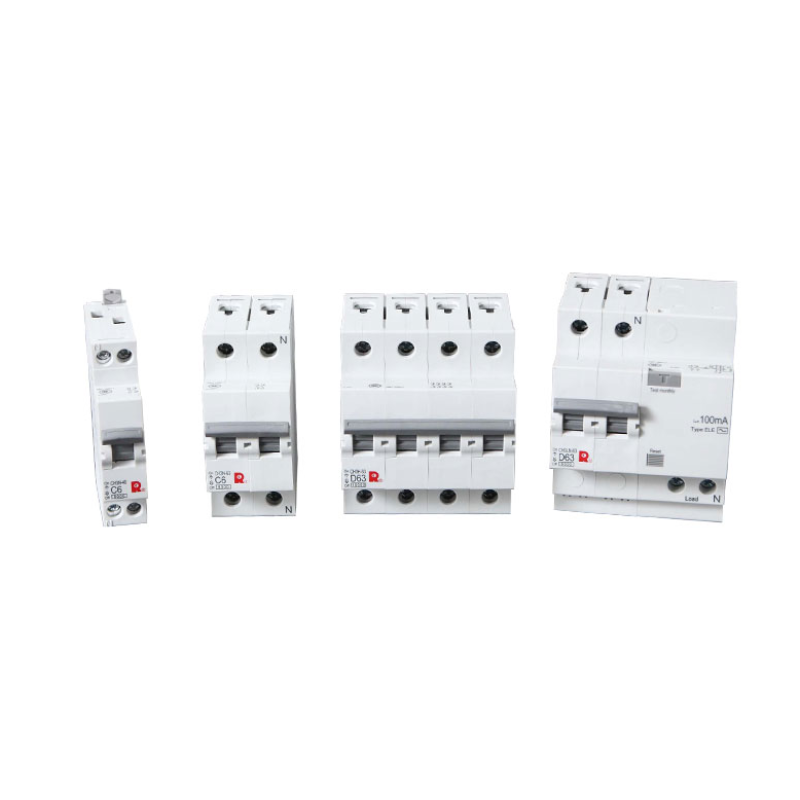

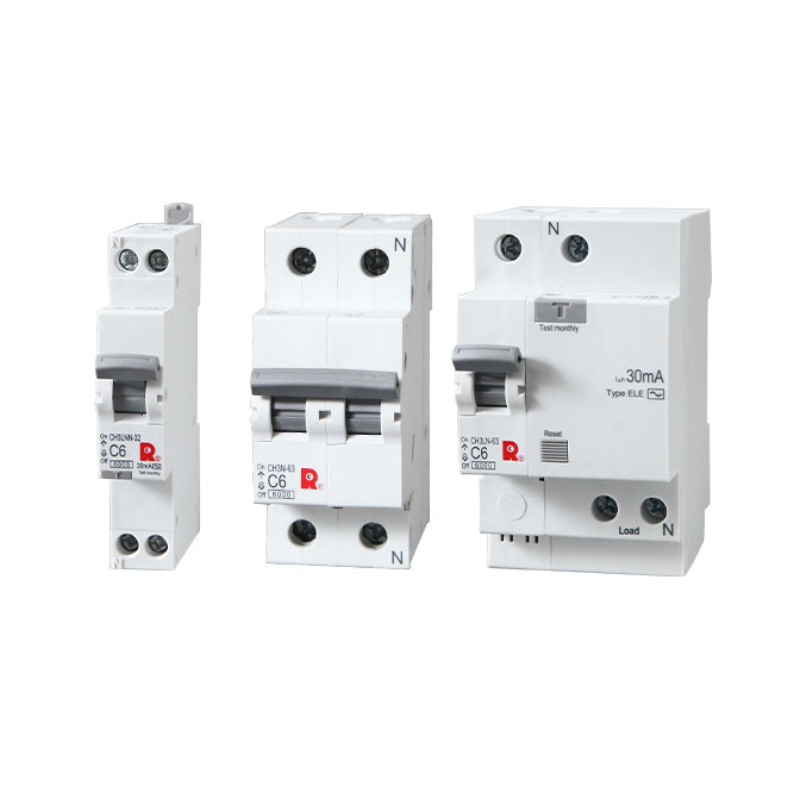

CH3 Series Modular Terminal Appliances
-
BrandChangshu
-
SeriesCH3
-

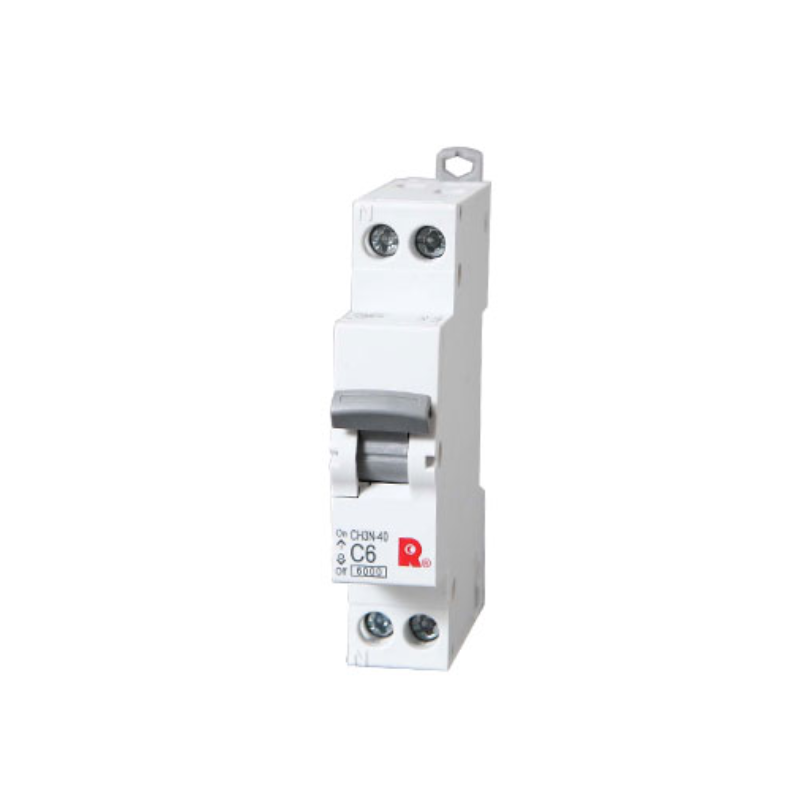

ModelCH3N-40C40/1
-
Polar Number1P
-
Rated Current40A
-
Rated Voltage230VAC
-
Rated Frequency (Hz)50/60
-
Disconnector CharacteristicsC
-
Breaking Capacity6KA
Changshu Switch CH3 Series Miniature Circuit Breaker
| Model | Meet The Standard | Polar Number | Rated Frequency (Hz) | Voltage Ue (V) | Short Circuit Capability Ics (Ka) | ||
| Rated Working Voltage | Rated Insulation Voltage | Run | Rated | ||||
| CH3N-40 | GB/T 10963.1 | 1 | 50/60 | 230 | 250 | 6 | 6 |
| CH3N-63 | GB/T 10963.1 | 1+1N | 50/60 | 230 | 500 | 6 | 6 |
| CH3N-63 | GB/T 10963.1 | 2.3.4 | 50/60 | 400 | 500 | 6 | 6 |
